Microsoft Dynamics

This page shows you how to integrate with Microsoft Dynamics. After you integrate, agents can take calls and chats directly from within a Microsoft Dynamics dashboard.

Microsoft Dynamics integration checklist

The following checklist outlines the steps involved in setting up your Microsoft Dynamics integration.

  1. Install the UJET solution into your environment. The latest version is 1.2.0.0.

  2. Configure the UJET solution IFrameUrl.

  3. Check domain based controls.

  4. Create New Azure app registration

    1. Add a platform configuration.

    2. Configure API permissions

    3. Create new certificates and secrets.

  5. Set up application users for this environment

  6. Set values in the administrator portal to connect to your Microsoft Dynamics instance.

  7. Proceed to optional steps.

Install the connector

To install the Contact Center AI Platform connector, follow these steps:

  1. Download and unzip the UJET solution. You can find it here: UJETConnector_1_2_0_0_managed-dynamics.zip.

  2. In Microsoft Dynamics, go to Service > Solutions.

  3. Click Import and upload the UJET solution.

  4. Locate the UJETConnector entry and check it is installed correctly. You can check this from the Connector Settings Manager. For more information, see Configuring the Connector URL.

Update or install the managed package

The managed package contains the connector. The connector installed to Microsoft Dynamics enables agents to take calls and chats directly in a Microsoft Dynamics dashboard.

Update or install the Connector in solutions management

  1. In Microsoft Dynamics, use the top right cogwheel to navigate to Advanced Settings.

  2. In the Settings screen, click the Expand more next to Settings to open the drop-down, and from there select Solutions.

Result: In the Solutions Management list, you can see the Connector.

Update or install the Contact Center AI Platform connector in Microsoft Dynamics

Prerequisites

  • You must be assigned as an Admin user with privileges to import connectors in Solutions Management.

  • You must have the managed Connector zip file. For example, Connector_1_2_0_0_managed.zip.

  • You must have the Power Apps user interface.

  • You must have a sufficient time window for agent adapter downtime. We recommend planning on approximately 10 minutes.

Import the Connector in Microsoft Dynamics

  1. In the Power Apps header, click the Import link. The Add a Solution pane appears.

  2. Click Browse to select the Connector to be imported.

  3. Click Import. The details of the package of the Connector to be imported should appear. If the details appear correctly, proceed to the next step. If not, check that you selected the correct file.

  4. Click Next.

Follow the steps to finish importing. There are no specific options required for the upgrading of the Connector.

When the installation is complete, refresh the agent page to show the updated Connector.

Result: The connector is installed and ready for use.

Configuring the Connector URL

After installing package v1_2_0_0, the new application is accessible to the integrator system builder.

  1. In the search bar, find the UJET Connector Settings Manager, and then click Play. This leads you to the application and to a view that gives you access to the UJET Settings table, which contains the configuration to the iframed adapter.

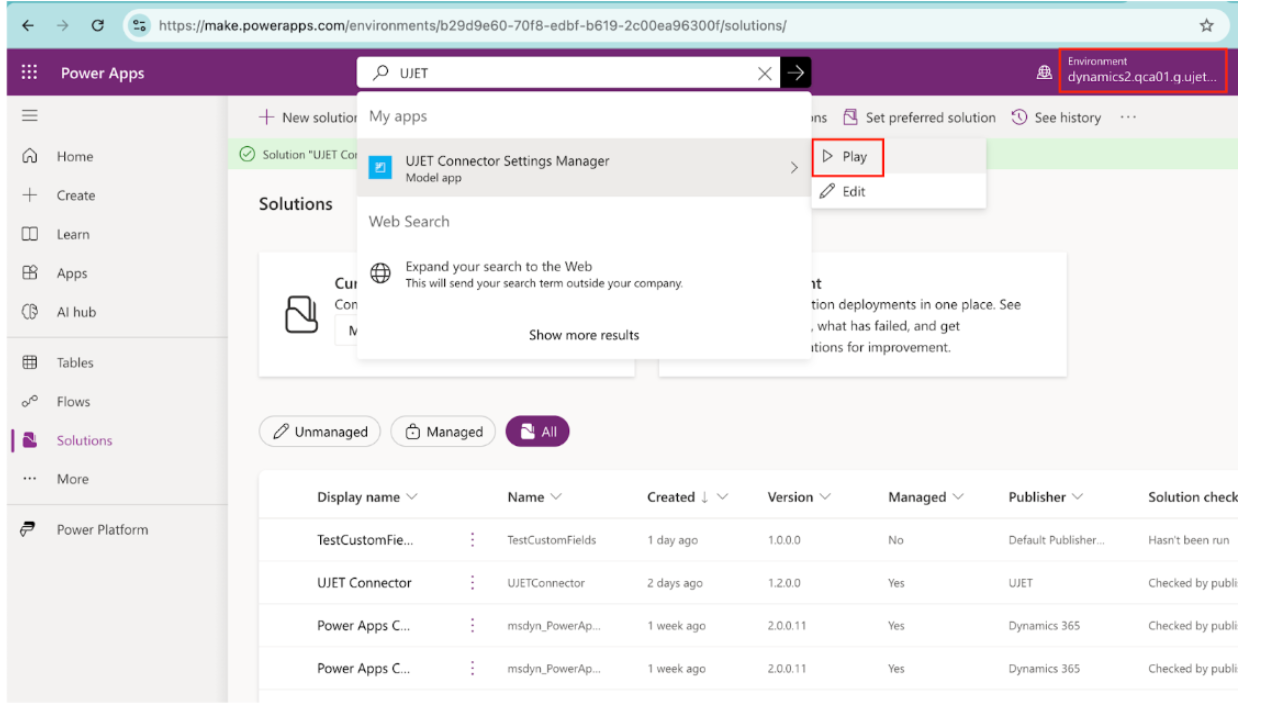

    The Microsoft Dynamics interface is shown, with the UJET Connector Settings Manager shown in the toolbar.

  2. For new installations, a new entry needs to be added to the settings table. Click New to add a new IFrameUrl setting.

    The UJET Connector Settings Manager is shown, with the name and value entered for IFrameURL.

  3. A new page opens to add an IFrameUrl. There are two fields present: Name and Value. Use the following sample values to help with configuration:

    1. Name: IFrameUrl

    2. Value: https://<tenant_subdomain>.&lt;environment_domain>

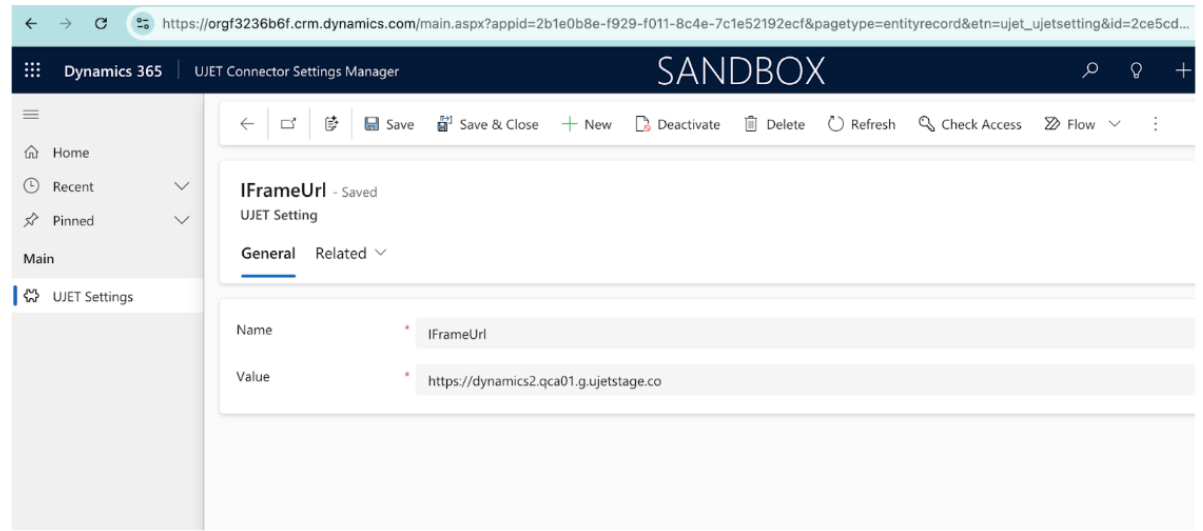

  4. Click Save. A new entry appears in your Settings table. The IFrameUrl configuration is now complete.

Add domain based access control for the agent adapter

Domain-based access control maintains security while also allowing you to define and control which domains can display the agent adapter.

Domain-based access control lets you define and control which domains can display the Agent Adapter. This is a crucial implementation step. Be sure to add all necessary domains in the developer settings as per the guidelines provided. Failure to do so may result in the adapter breaking.

If you have any questions or need assistance with implementation, contact Support.

Add your domains in developer settings

To add domains in developer settings, follow these steps:

  1. In the CCAI Platform portal, click Settings > Developer Settings. If you don't see the Settings menu, click Menu.

  2. Go to Agent Adapter - Domain Based Access Control

  3. Enter each domain on a new line. The format is *.domain—for example, *.mycompany.com.

Specifying a domain

The format for specifying a domain for an instance can be any valid domain name, and it can include a wildcard (*) to match an arbitrary number of subdomains. The wildcard must be placed at the beginning of the domain, and it matches any subdomains. Additionally, the user has the option to specify a protocol and a port using the syntax <protocol>://<domain>:<port>.

The port may be a wildcard, but the protocol cannot be a wildcard. If a protocol is specified, it matches only that protocol and all other protocols won't be able to display the adapter. For example, https://some.example.domain.com won't match http://some.example.domain.com or mail://some.example.domain.com.

CRM specific domains

Use the following domain naming conventions when entering your CRM domain.

Salesforce: *.visualforce.com *.force.com *.salesforce.com

Zendesk: *.zdusercontent.com *.zendesk.com

Microsoft Dynamics: *.crm.dynamics.com

Kustomer: *.kustomerapp.com

Reload Frame on the adapter

After making administrator configuration changes, if the agent adapter is not visible for agents, they must right-click the agent adapter, and then click Reload Frame.

Azure app registration (OAuth client)

Create a new application registration in Azure

  1. Go to Azure Active Directory > App registrations > New application registration. The Register an application page appears.

  2. Fill in the required fields:

    • In the Name field, enter the URL of your environment without the https://. For example— yourcompany.domain.co.

    • For the Supported account types section, click Accounts in the Organizational Directory Only.

  3. Click Register. The application is now registered.

Authentication settings

Add a platform configuration

To add a platform configuration in Microsoft Dynamics, follow these steps:

  1. After creating the registered App, go to Authentication and enter your callback URL in the Redirect URI field—for example, https://yourcompany.domain.co/v1/dynamics/oauth_callback.

  2. Click the checkbox for ID tokens.

Create new certificates and secrets

To create new certificates and secrets in Microsoft Dynamics, follow these steps:

  1. Go to Certificates & secrets to create a new key in the Add a client secret panel:

    • In the Description field, enter a description such as API KEY.

    • In the Expires section, click the longest available time period allowed by your security team.

    Note: This has to be regenerated after the expired time has been reached.

  2. Click Add.

Add API permissions

To add API permissions in Microsoft Dynamics, follow these steps:

  1. Go to Manage > API permissions and click Add a permission.

  2. Click Dynamics CRM.

  3. Click Delegated permissions.

  4. Check the box for user_permission.

  5. While still in API permissions, click again Add a permission.

  6. Click Microsoft Graph.

  7. Click Application Permissions.

  8. Add Application.ReadWrite.All, Directory.Read.All, and User.Read.All. permissions.

  9. Confirm all permissions under Microsoft Graph are selected, including User.Read.

  10. Click Grant admin consent for [your organization name] and confirm in the dialogue box that appears.

  11. Confirm the status is now Granted for your organization name.

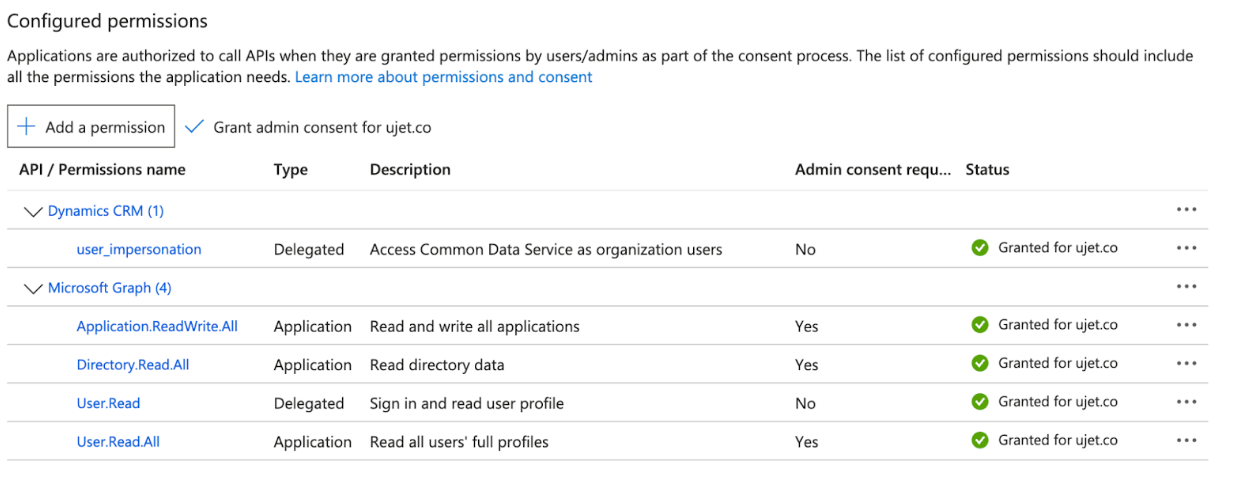

The options for API permissions are shown.

Input your values in the Contact Center AI Platform portal

To input your values in the Contact Center AI Platform portal, follow these steps:

  1. In the CCAI Platform portal, click Settings > Developer Settings. If you don't see the Settings menu, click Menu.

  2. Scroll to CRM > Agent Platform.

  3. Click Microsoft Dynamics and enter values for the following:

    1. Application ID: application client ID (Microsoft Dynamics) found in the overview page of your app registration.

    2. Key Password: This must be copied after its creation as you won't be able to view it again fully on refresh. For more information, see Authentication settings.

    3. Active Directory Tenant: directory (tenant ID) found in the overview page of your app registration.

    4. Microsoft Dynamics Domain - Enter the URL of your environment. This can be found on the environment overview page.

    Note: Make sure all of these fields are correct before saving and proceeding.

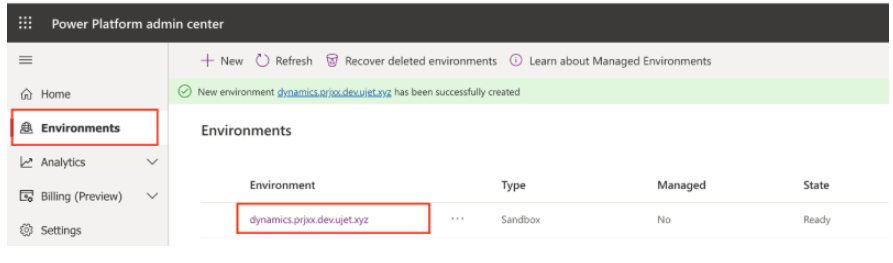

    The options for the Power Platform administration center are shown, with the Environments tab highlighted.

  4. Click Save.

Set up application users for your environment

To set up application users for your environment in Microsoft Dynamics, follow these steps:

  1. Choose your environment and click Settings.

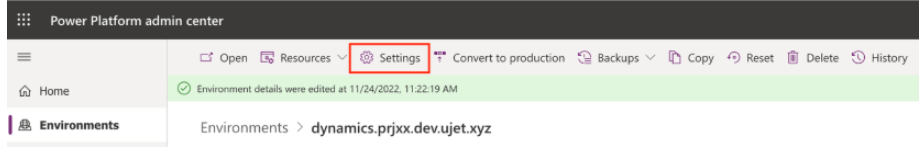

    The settings tab for the Microsoft Dynamics environment is shown.

  2. Click Application Users.

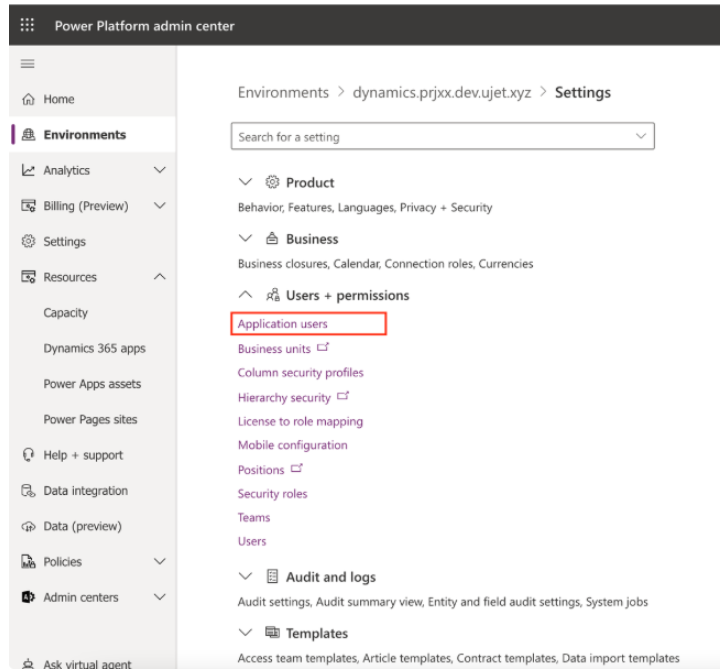

    The application user settings are shown from the Environment tab.

  3. Click Setup app user.

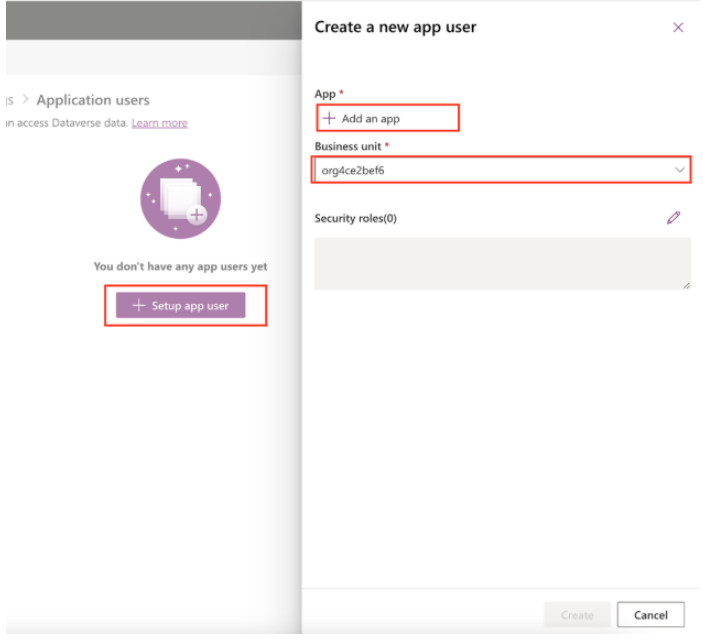

    The window for setting up a new app user in Microsoft Dynamics is shown.

    1. In the App field, choose an existing app and click Add.

    2. Click the Business Unit field, and then click a business unit.

    3. Add the following security roles:

    4. Service Reader

    5. Service Writer

  4. Click Create.

Test custom field mapping

This section uses MyCustomField as a walkthrough example for adding and mapping a custom field.

To set up custom field mapping, follow these steps in Microsoft Dynamics:

  1. Create a new custom field in a solution component:

    1. Go to Sales > Settings > Solutions.

    2. At the top of the All Solutions page, click New.

    3. Enter TestCustomFields as the Display Name.

    4. Click Save and Close.

    5. Click your existing solution component

  2. Go to Components > Entities > Add Existing.

  3. Click the Contact solution component.

  4. Click OK to view the Contact solution component details. The solution component System Form dialog appears.

  5. Click the entity assets that you want to include in the solution.

    1. Include entity metadata

    2. Add All Assets

For this example, click Include entity metadata.

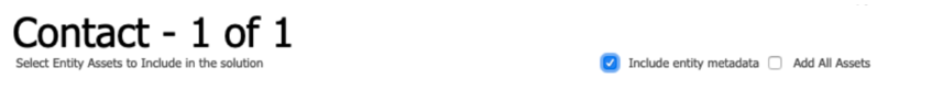

An example of the entity assets with the entity metadata is shown.

  1. Click Finish.

  2. Go to Components > Entities > Contact > Fields.

  3. Click New.

  4. A new field name populates in the Name field. Copy the field name for later use:

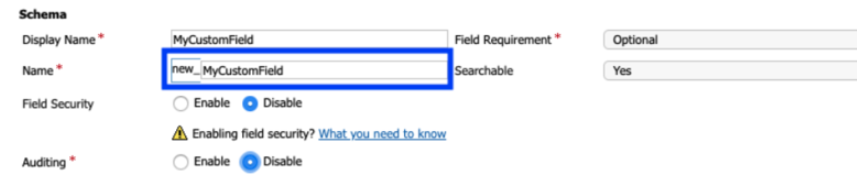

    The custom field naming is shown, with the name field highlighted.

  5. Click Save and Close.

Edit form to display the custom field

The following example focuses on the contact solution component that was previously configured in Update or install the connector in solutions management.

To edit the form to display the custom field, follow these steps in Microsoft Dynamics:

  1. Open a contact and click Form.

  2. Open the Field Explorer and filter by Custom Fields.

    alt

  3. Double-click MyCustomField.

  4. Click Save, and then click Publish to add the new field to the form.

  5. Refresh the browser to check that the form displays in the contact screen.

  6. Confirm that MyCustomField is in the form.

  7. Enter the identified value in the MyCustomField field.

  8. Click Save.

Set up custom field mapping in the Contact Center AI Platform portal

To set up custom field mapping in the Contact Center AI Platform portal, follow these steps:

  1. In the CCAI Platform portal, click Settings > Developer Settings. If you don't see the Settings menu, click Menu.

  2. Go to Custom Field Mapping and click the box.

  3. Under CRM field to use in lookup, click the custom field created earlier (new_mycustomfield).

Populate the account and customer fields in a custom case form

The default action within Microsoft Dynamics is to fill in the customer information exclusively when a case is created. Updating this setting allows the contact field to be populated with the customer information from a case at the same time.

  1. In the CCAI Platform portal, click Settings > Developer Settings. If you don't see the Settings menu, click Menu.

  2. Go to CRM > Account Lookup.

  3. Click Contact under Object Type.

  4. Select the Use Custom Parameter Matching checkbox.

Switching between object types clears the table unless the fields are saved. This lets the Contact field on the case object and the Customer field with the Account associated with the Contact (if there is one), to be updated simultaneously.

The CRM ticket updates when the checkbox Use Custom Parameter Matching is checked and Parameters Configuration is valid, otherwise it reverts to default logic to update the CRM. If all parameters are configured correctly, they all update. If any parameters are configured incorrectly, only the correctly configured parameters update.

Test USER segment DAP

To test a DAP, follow these steps:

  1. In the CCAI Platform portal, click Settings > Queue. If you don't see the Settings menu, click Menu.

  2. Choose your preferred Social Channel

  3. In the Settings panel, go to Access point and click the edit icon beside the access point to update.

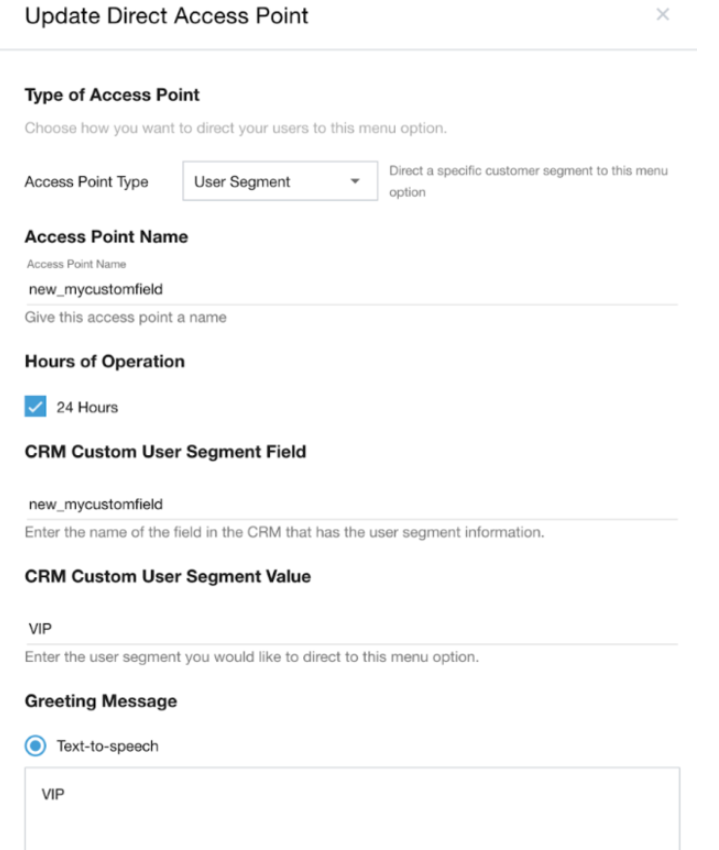

    The options to update the Direct Access Point are shown.

  4. In the CRM Custom User Segment Field, enter the name of the field in the CRM that contains the user segment information—for example, new_mycustomfield.
