berlaku untuk Apigee dan Apigee hybrid.
Dokumen ini menjelaskan cara membuat dan mengelola dependensi antar-API terdaftar.
Dependensi membantu Anda melihat hubungan antar-API. Lihat
Pengantar dependensi.
UI memungkinkan Anda melihat sekilas hubungan antara API konsumen dan pemasok, dengan konsumen bergantung pada operasi dari pemasok. Lihat Gambar 1.

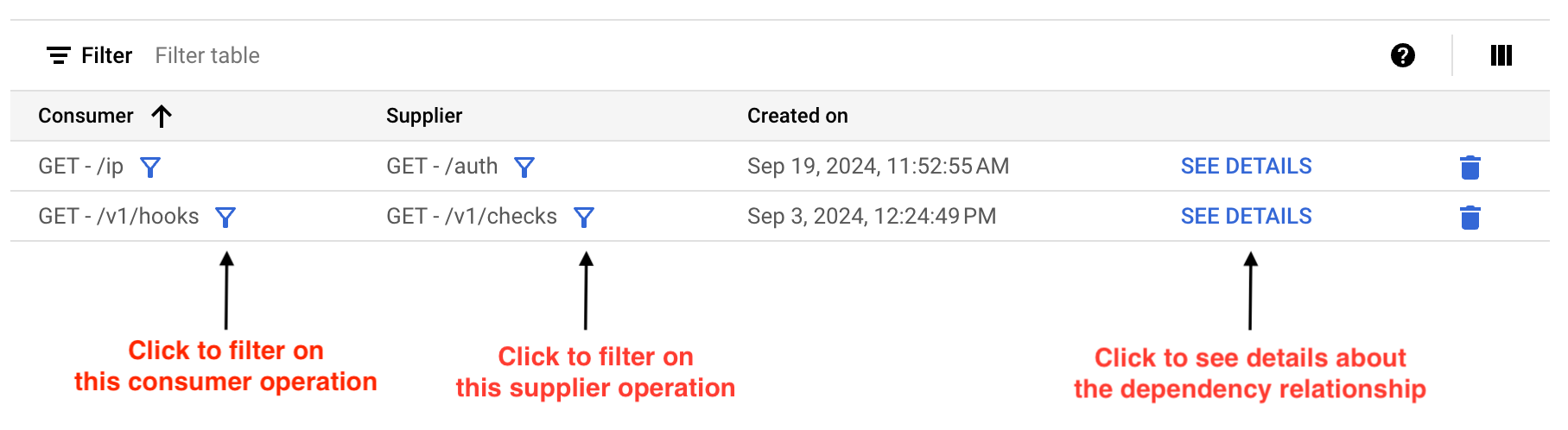

Gambar 1. UI dependensi API menampilkan pasangan konsumen/pemasok, dengan
operasi konsumen bergantung pada operasi pemasok. Anda dapat dengan mudah melihat detail setiap dependensi. Anda juga dapat memfilter tabel menurut operasi konsumen dan/atau pemasok.
Membuat dependensi
Anda dapat membuat entity dependensi dengan REST API.
Konsol
Untuk membuat dependensi:
Di konsol Google Cloud, buka halaman Supply chain di API hub.
Nama resource API eksternal mengikuti format ini: projects/PROJECT/locations/LOCATION/externalApis/EXTERNAL_API
Contoh resource API eksternal: "projects/myproject/locations/us-central1/externalApis/petstore".
Contoh respons:
{
"name": "projects/myproject/locations/us-central1/dependencies/user-to-pet",
"consumer": {
"displayName": "POST - /v2/user",
"operationResourceName": "projects/myproject/locations/us-central1/apis/payments-api/versions/version1/operations/createuser"
},
"supplier": {
"displayName": "POST - /v2/pet",
"operationResourceName": "projects/myproject/locations/us-central1/apis/payments-api/versions/version1/operations/addpet"
},
"state": "VALIDATED",
"description": "Dependency from user to pet API",
"discoveryMode": "MANUAL",
"createTime": "2024-04-17T19:33:31.664226Z",
"updateTime": "2024-04-17T19:33:31.664226Z"
}
Contoh REST
curl -X POST 'https://apihub.googleapis.com/v1/projects/myproject/locations/us-central1/dependencies?dependency_id=user-to-pet' \
-H "Authorization: Bearer $(gcloud auth print-access-token)" \
-H 'Content-Type: application/json' \
--d '{
"description": "Dependency from user to pet API",
"consumer": {
"operation_resource_name": "projects/myproject/locations/us-central1/apis/payments-api/versions/paymentv1/operations/createuser"
},
"supplier": {
"operation_resource_name": "projects/myproject/locations/us-central1/apis/pet-api/versions/petstorev1/operations/addpet"
}
}'
Mencantumkan dependensi
Bagian ini menjelaskan cara mencantumkan dependensi. Anda dapat mencantumkan semua dependensi yang terkait
dengan semua versi untuk API, atau mencantumkan semua dependensi yang terkait dengan versi tertentu.
Konsol
Untuk mencantumkan dependensi:
Di konsol Google Cloud, buka halaman Supply chain di API hub.
Daftar dependensi yang diketahui akan muncul di halaman Supply chain.
Di kolom Filter, jika diperlukan, tentukan operasi
pemasok dan/atau konsumen untuk menampilkan dependensi yang relevan. Fitur filter memungkinkan Anda menemukan semua dependensi yang ditautkan dengan operasi yang ditentukan.
Bagian ini menjelaskan cara mendapatkan detail tentang dependensi API dengan REST API. Anda dapat
melihat detail konsumen dan pemasok, serta melihat detail tentang dependensi termasuk error
yang dapat menunjukkan, misalnya, dependensi yang rusak.
Konsol
Untuk mendapatkan dependensi:
Di konsol Google Cloud, buka halaman Supply chain di API hub.
Di kolom Filter, jika diperlukan, tentukan operasi
pemasok dan/atau konsumen untuk menampilkan dependensi yang relevan. Fitur filter memungkinkan Anda menemukan semua dependensi yang ditautkan dengan operasi yang ditentukan.
Temukan dependensi yang diinginkan, lalu klik Lihat Detail.
Di kolom Filter, jika diperlukan, tentukan operasi
pemasok dan/atau konsumen untuk menampilkan dependensi yang relevan. Fitur filter memungkinkan Anda menemukan semua dependensi yang ditautkan dengan operasi yang ditentukan.
Temukan dependensi yang diinginkan, lalu klik ikon hapus untuk menghapus dependensi tersebut.
REST
Untuk menghapus dependensi dari API hub, gunakan Delete dependency API:
Di kolom Filter, jika diperlukan, tentukan operasi
pemasok dan/atau konsumen untuk menampilkan dependensi yang relevan. Fitur filter memungkinkan Anda menemukan semua dependensi yang ditautkan dengan operasi
yang ditentukan.
Temukan dependensi yang diinginkan, lalu klik Lihat Detail.
Di halaman Dependensi, Anda dapat mengedit deskripsi dan atribut. Gunakan ikon
edit untuk mengaktifkan pengeditan pada kolom tersebut.
