函式呼叫簡介

函式呼叫 (也稱為「工具使用」) 會為大型語言模型提供外部工具 (例如 get_current_weather 函式) 的定義。處理提示時,模型會判斷是否需要工具,如果需要,就會輸出結構化資料,指定要呼叫的工具及其參數 (例如 get_current_weather(location='Boston'))。應用程式隨後會執行這項工具,並將結果回饋至模型,讓模型以動態的實際資訊或動作結果完成回覆。這樣就能有效連結 LLM 與系統,並擴充 LLM 的功能。

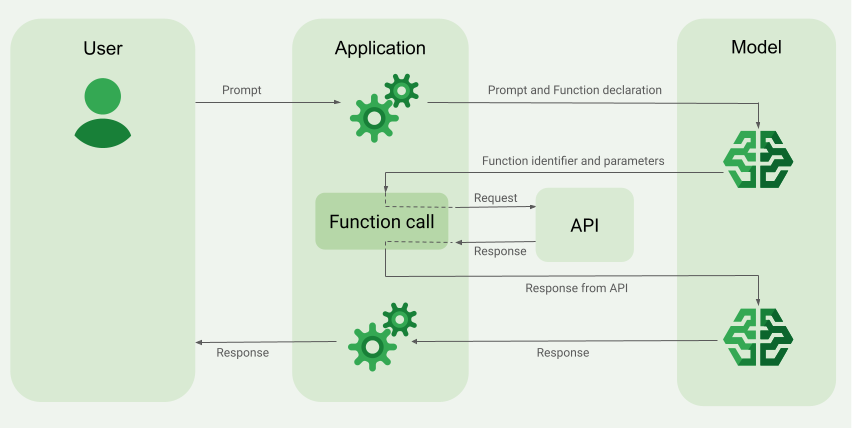

函式呼叫互動

函式呼叫可用於兩種主要用途:

  • 擷取資料:擷取模型回覆的最新資訊,例如目前天氣、貨幣轉換或知識庫和 API 的特定資料 (RAG)。

  • 採取行動:執行外部作業,例如提交表單、更新應用程式狀態,或協調代理人工作流程 (例如對話移交)。

如要進一步瞭解更多用途和範例,請參閱「用途」一文。

功能與限制

如何建立函式呼叫應用程式

如要使用函式呼叫,請執行下列工作:

  1. 將函式宣告和提示傳送至模型
  2. 將 API 輸出內容提供給模型

步驟 1:將提示和函式宣告提交至模型

使用與 OpenAPI 結構定義相容的結構定義格式,宣告 Tool。詳情請參閱結構定義範例

以下範例會將提示和函式宣告提交至模型。

REST

PROJECT_ID=myproject
LOCATION=us-central1
MODEL_ID=gemini-2.0-flash-001

curl -X POST \
  -H "Authorization: Bearer $(gcloud auth print-access-token)" \
  -H "Content-Type: application/json" \
  https://${LOCATION}-aiplatform.googleapis.com/v1/projects/${PROJECT_ID}/locations/${LOCATION}/publishers/google/models/${MODEL_ID}:generateContent \
  -d '{
    "contents": [{
      "role": "user",
      "parts": [{
        "text": "What is the weather in Boston?"
      }]
    }],
    "tools": [{
      "functionDeclarations": [
        {
          "name": "get_current_weather",
          "description": "Get the current weather in a given location",
          "parameters": {
            "type": "object",
            "properties": {
              "location": {
                "type": "string",
                "description": "The city name of the location for which to get the weather.",
                "default": {
                  "string_value": "Boston, MA"
                }
              }
            },
            "required": [
              "location"
            ]
          }
        }
      ]
    }]
  }'

Python

您可以使用 Python 字典手動指定結構定義,也可以使用 from_func 輔助函式自動指定結構定義。以下範例說明如何手動宣告函式。

import vertexai
from vertexai.generative_models import (
    Content,
    FunctionDeclaration,
    GenerationConfig,
    GenerativeModel,
    Part,
    Tool,
    ToolConfig
)

# Initialize Vertex AI
# TODO(developer): Update the project
vertexai.init(project="PROJECT_ID", location="us-central1")

# Initialize Gemini model
model = GenerativeModel(model_name="gemini-2.0-flash")

# Manual function declaration
get_current_weather_func = FunctionDeclaration(
    name="get_current_weather",
    description="Get the current weather in a given location",
    # Function parameters are specified in JSON schema format
    parameters={
        "type": "object",
        "properties": {
            "location": {
              "type": "string",
              "description": "The city name of the location for which to get the weather.",
              "default": {
                "string_value": "Boston, MA"
              }
           }
        },
    },
)

response = model.generate_content(
    contents = [
      Content(
        role="user",
          parts=[
              Part.from_text("What is the weather like in Boston?"),
          ],
      )
    ],
    generation_config = GenerationConfig(temperature=0),
    tools = [
      Tool(
        function_declarations=[get_current_weather_func],
      )
    ]
)

或者,您也可以使用 from_func 輔助函式自動宣告函式,如以下範例所示:

def get_current_weather(location: str = "Boston, MA"):
  """
  Get the current weather in a given location

  Args:
      location: The city name of the location for which to get the weather.

  """
  # This example uses a mock implementation.
  # You can define a local function or import the requests library to call an API
  return {
    "location": "Boston, MA",
    "temperature": 38,
    "description": "Partly Cloudy",
    "icon": "partly-cloudy",
    "humidity": 65,
    "wind": {
        "speed": 10,
        "direction": "NW"
    }
  }
get_current_weather_func = FunctionDeclaration.from_func(get_current_weather)

Node.js

這個範例說明一個包含一個函式和一個提示的文字情境。

Node.js

在試用這個範例之前,請先按照 Vertex AI 快速入門:使用用戶端程式庫中的操作說明設定 Node.js。詳情請參閱 Vertex AI Node.js API 參考說明文件

如要向 Vertex AI 進行驗證,請設定應用程式預設憑證。詳情請參閱「為本機開發環境設定驗證機制」。

const {
  VertexAI,
  FunctionDeclarationSchemaType,
} = require('@google-cloud/vertexai');

const functionDeclarations = [
  {
    function_declarations: [
      {
        name: 'get_current_weather',
        description: 'get weather in a given location',
        parameters: {
          type: FunctionDeclarationSchemaType.OBJECT,
          properties: {
            location: {type: FunctionDeclarationSchemaType.STRING},
            unit: {
              type: FunctionDeclarationSchemaType.STRING,
              enum: ['celsius', 'fahrenheit'],
            },
          },
          required: ['location'],
        },
      },
    ],
  },
];

const functionResponseParts = [
  {
    functionResponse: {
      name: 'get_current_weather',
      response: {name: 'get_current_weather', content: {weather: 'super nice'}},
    },
  },
];

/**
 * TODO(developer): Update these variables before running the sample.
 */
async function functionCallingStreamContent(
  projectId = 'PROJECT_ID',
  location = 'us-central1',
  model = 'gemini-2.0-flash-001'
) {
  // Initialize Vertex with your Cloud project and location
  const vertexAI = new VertexAI({project: projectId, location: location});

  // Instantiate the model
  const generativeModel = vertexAI.getGenerativeModel({
    model: model,
  });

  const request = {
    contents: [
      {role: 'user', parts: [{text: 'What is the weather in Boston?'}]},
      {
        role: 'ASSISTANT',
        parts: [
          {
            functionCall: {
              name: 'get_current_weather',
              args: {location: 'Boston'},
            },
          },
        ],
      },
      {role: 'USER', parts: functionResponseParts},
    ],
    tools: functionDeclarations,
  };
  const streamingResp = await generativeModel.generateContentStream(request);
  for await (const item of streamingResp.stream) {
    console.log(item.candidates[0].content.parts[0].text);
  }
}

Go

這個範例說明包含一個函式和一個提示的文字情境。

瞭解如何安裝或更新 Gen AI SDK for Go

詳情請參閱 SDK 參考說明文件

設定環境變數,以便在 Vertex AI 中使用 Gen AI SDK:

# Replace the `GOOGLE_CLOUD_PROJECT` and `GOOGLE_CLOUD_LOCATION` values
# with appropriate values for your project.
export GOOGLE_CLOUD_PROJECT=GOOGLE_CLOUD_PROJECT
export GOOGLE_CLOUD_LOCATION=global
export GOOGLE_GENAI_USE_VERTEXAI=True

import (
	"context"
	"fmt"
	"io"

	genai "google.golang.org/genai"
)

// generateWithFuncCall shows how to submit a prompt and a function declaration to the model,
// allowing it to suggest a call to the function to fetch external data. Returning this data
// enables the model to generate a text response that incorporates the data.
func generateWithFuncCall(w io.Writer) error {
	ctx := context.Background()

	client, err := genai.NewClient(ctx, &genai.ClientConfig{
		HTTPOptions: genai.HTTPOptions{APIVersion: "v1"},
	})
	if err != nil {
		return fmt.Errorf("failed to create genai client: %w", err)
	}

	weatherFunc := &genai.FunctionDeclaration{
		Description: "Returns the current weather in a location.",
		Name:        "getCurrentWeather",
		Parameters: &genai.Schema{
			Type: "object",
			Properties: map[string]*genai.Schema{
				"location": {Type: "string"},
			},
			Required: []string{"location"},
		},
	}
	config := &genai.GenerateContentConfig{
		Tools: []*genai.Tool{
			{FunctionDeclarations: []*genai.FunctionDeclaration{weatherFunc}},
		},
		Temperature: genai.Ptr(0.0),
	}

	modelName := "gemini-2.0-flash-001"
	contents := []*genai.Content{
		{Parts: []*genai.Part{
			{Text: "What is the weather like in Boston?"},
		}},
	}

	resp, err := client.Models.GenerateContent(ctx, modelName, contents, config)
	if err != nil {
		return fmt.Errorf("failed to generate content: %w", err)
	}

	var funcCall *genai.FunctionCall
	for _, p := range resp.Candidates[0].Content.Parts {
		if p.FunctionCall != nil {
			funcCall = p.FunctionCall
			fmt.Fprint(w, "The model suggests to call the function ")
			fmt.Fprintf(w, "%q with args: %v\n", funcCall.Name, funcCall.Args)
			// Example response:
			// The model suggests to call the function "getCurrentWeather" with args: map[location:Boston]
		}
	}
	if funcCall == nil {
		return fmt.Errorf("model did not suggest a function call")
	}

	// Use synthetic data to simulate a response from the external API.
	// In a real application, this would come from an actual weather API.
	funcResp := &genai.FunctionResponse{
		Name: "getCurrentWeather",
		Response: map[string]any{
			"location":         "Boston",
			"temperature":      "38",
			"temperature_unit": "F",
			"description":      "Cold and cloudy",
			"humidity":         "65",
			"wind":             `{"speed": "10", "direction": "NW"}`,
		},
	}

	// Return conversation turns and API response to complete the model's response.
	contents = []*genai.Content{
		{Parts: []*genai.Part{
			{Text: "What is the weather like in Boston?"},
		}},
		{Parts: []*genai.Part{
			{FunctionCall: funcCall},
		}},
		{Parts: []*genai.Part{
			{FunctionResponse: funcResp},
		}},
	}

	resp, err = client.Models.GenerateContent(ctx, modelName, contents, config)
	if err != nil {
		return fmt.Errorf("failed to generate content: %w", err)
	}

	respText, err := resp.Text()
	if err != nil {
		return fmt.Errorf("failed to convert model response to text: %w", err)
	}
	fmt.Fprintln(w, respText)

	// Example response:
	// The weather in Boston is cold and cloudy with a temperature of 38 degrees Fahrenheit. The humidity is ...

	return nil
}

C#

這個範例說明包含一個函式和一個提示的文字情境。

C#

在試用這個範例之前,請先按照 Vertex AI 快速入門:使用用戶端程式庫中的操作說明設定 C#。詳情請參閱 Vertex AI C# API 參考說明文件

如要向 Vertex AI 進行驗證,請設定應用程式預設憑證。詳情請參閱「為本機開發環境設定驗證機制」。


using Google.Cloud.AIPlatform.V1;
using System;
using System.Threading.Tasks;
using Type = Google.Cloud.AIPlatform.V1.Type;
using Value = Google.Protobuf.WellKnownTypes.Value;

public class FunctionCalling
{
    public async Task<string> GenerateFunctionCall(
        string projectId = "your-project-id",
        string location = "us-central1",
        string publisher = "google",
        string model = "gemini-2.0-flash-001")
    {
        var predictionServiceClient = new PredictionServiceClientBuilder
        {
            Endpoint = $"{location}-aiplatform.googleapis.com"
        }.Build();

        // Define the user's prompt in a Content object that we can reuse in
        // model calls
        var userPromptContent = new Content
        {
            Role = "USER",
            Parts =
            {
                new Part { Text = "What is the weather like in Boston?" }
            }
        };

        // Specify a function declaration and parameters for an API request
        var functionName = "get_current_weather";
        var getCurrentWeatherFunc = new FunctionDeclaration
        {
            Name = functionName,
            Description = "Get the current weather in a given location",
            Parameters = new OpenApiSchema
            {
                Type = Type.Object,
                Properties =
                {
                    ["location"] = new()
                    {
                        Type = Type.String,
                        Description = "Get the current weather in a given location"
                    },
                    ["unit"] = new()
                    {
                        Type = Type.String,
                        Description = "The unit of measurement for the temperature",
                        Enum = {"celsius", "fahrenheit"}
                    }
                },
                Required = { "location" }
            }
        };

        // Send the prompt and instruct the model to generate content using the tool that you just created
        var generateContentRequest = new GenerateContentRequest
        {
            Model = $"projects/{projectId}/locations/{location}/publishers/{publisher}/models/{model}",
            GenerationConfig = new GenerationConfig
            {
                Temperature = 0f
            },
            Contents =
            {
                userPromptContent
            },
            Tools =
            {
                new Tool
                {
                    FunctionDeclarations = { getCurrentWeatherFunc }
                }
            }
        };

        GenerateContentResponse response = await predictionServiceClient.GenerateContentAsync(generateContentRequest);

        var functionCall = response.Candidates[0].Content.Parts[0].FunctionCall;
        Console.WriteLine(functionCall);

        string apiResponse = "";

        // Check the function name that the model responded with, and make an API call to an external system
        if (functionCall.Name == functionName)
        {
            // Extract the arguments to use in your API call
            string locationCity = functionCall.Args.Fields["location"].StringValue;

            // Here you can use your preferred method to make an API request to
            // fetch the current weather

            // In this example, we'll use synthetic data to simulate a response
            // payload from an external API
            apiResponse = @"{ ""location"": ""Boston, MA"",
                    ""temperature"": 38, ""description"": ""Partly Cloudy""}";
        }

        // Return the API response to Gemini so it can generate a model response or request another function call
        generateContentRequest = new GenerateContentRequest
        {
            Model = $"projects/{projectId}/locations/{location}/publishers/{publisher}/models/{model}",
            Contents =
            {
                userPromptContent, // User prompt
                response.Candidates[0].Content, // Function call response,
                new Content
                {
                    Parts =
                    {
                        new Part
                        {
                            FunctionResponse = new()
                            {
                                Name = functionName,
                                Response = new()
                                {
                                    Fields =
                                    {
                                        { "content", new Value { StringValue = apiResponse } }
                                    }
                                }
                            }
                        }
                    }
                }
            },
            Tools =
            {
                new Tool
                {
                    FunctionDeclarations = { getCurrentWeatherFunc }
                }
            }
        };

        response = await predictionServiceClient.GenerateContentAsync(generateContentRequest);

        string responseText = response.Candidates[0].Content.Parts[0].Text;
        Console.WriteLine(responseText);

        return responseText;
    }
}

Java

Java

在試用這個範例之前,請先按照 Vertex AI 快速入門:使用用戶端程式庫中的操作說明設定 Java。詳情請參閱 Vertex AI Java API 參考說明文件

如要向 Vertex AI 進行驗證,請設定應用程式預設憑證。詳情請參閱「為本機開發環境設定驗證機制」。

import com.google.cloud.vertexai.VertexAI;
import com.google.cloud.vertexai.api.Content;
import com.google.cloud.vertexai.api.FunctionDeclaration;
import com.google.cloud.vertexai.api.GenerateContentResponse;
import com.google.cloud.vertexai.api.Schema;
import com.google.cloud.vertexai.api.Tool;
import com.google.cloud.vertexai.api.Type;
import com.google.cloud.vertexai.generativeai.ChatSession;
import com.google.cloud.vertexai.generativeai.ContentMaker;
import com.google.cloud.vertexai.generativeai.GenerativeModel;
import com.google.cloud.vertexai.generativeai.PartMaker;
import com.google.cloud.vertexai.generativeai.ResponseHandler;
import java.io.IOException;
import java.util.Arrays;
import java.util.Collections;

public class FunctionCalling {
  public static void main(String[] args) throws IOException {
    // TODO(developer): Replace these variables before running the sample.
    String projectId = "your-google-cloud-project-id";
    String location = "us-central1";
    String modelName = "gemini-2.0-flash-001";

    String promptText = "What's the weather like in Paris?";

    whatsTheWeatherLike(projectId, location, modelName, promptText);
  }

  // A request involving the interaction with an external tool
  public static String whatsTheWeatherLike(String projectId, String location,
                                           String modelName, String promptText)
      throws IOException {
    // Initialize client that will be used to send requests.
    // This client only needs to be created once, and can be reused for multiple requests.
    try (VertexAI vertexAI = new VertexAI(projectId, location)) {

      FunctionDeclaration functionDeclaration = FunctionDeclaration.newBuilder()
          .setName("getCurrentWeather")
          .setDescription("Get the current weather in a given location")
          .setParameters(
              Schema.newBuilder()
                  .setType(Type.OBJECT)
                  .putProperties("location", Schema.newBuilder()
                      .setType(Type.STRING)
                      .setDescription("location")
                      .build()
                  )
                  .addRequired("location")
                  .build()
          )
          .build();

      System.out.println("Function declaration:");
      System.out.println(functionDeclaration);

      // Add the function to a "tool"
      Tool tool = Tool.newBuilder()
          .addFunctionDeclarations(functionDeclaration)
          .build();

      // Start a chat session from a model, with the use of the declared function.
      GenerativeModel model = new GenerativeModel(modelName, vertexAI)
          .withTools(Arrays.asList(tool));
      ChatSession chat = model.startChat();

      System.out.println(String.format("Ask the question: %s", promptText));
      GenerateContentResponse response = chat.sendMessage(promptText);

      // The model will most likely return a function call to the declared
      // function `getCurrentWeather` with "Paris" as the value for the
      // argument `location`.
      System.out.println("\nPrint response: ");
      System.out.println(ResponseHandler.getContent(response));

      // Provide an answer to the model so that it knows what the result
      // of a "function call" is.
      Content content =
          ContentMaker.fromMultiModalData(
              PartMaker.fromFunctionResponse(
                  "getCurrentWeather",
                  Collections.singletonMap("currentWeather", "sunny")));
      System.out.println("Provide the function response: ");
      System.out.println(content);
      response = chat.sendMessage(content);

      // See what the model replies now
      System.out.println("Print response: ");
      String finalAnswer = ResponseHandler.getText(response);
      System.out.println(finalAnswer);

      return finalAnswer;
    }
  }
}

如果模型判斷需要特定函式的輸出內容,應用程式從模型收到的回應就會包含函式名稱,以及應以何種方式呼叫函式的參數值。

以下是模型回覆使用者提示「波士頓的天氣如何?」的範例。模型建議使用 Boston, MA 參數呼叫 get_current_weather 函式。

candidates {
  content {
    role: "model"
    parts {
      function_call {
        name: "get_current_weather"
        args {
          fields {
            key: "location"
            value {
              string_value: "Boston, MA"
            }
          }
        }
      }
    }
  }
  ...
}

步驟 2:為模型提供 API 輸出內容

叫用外部 API,並將 API 輸出內容傳回模型。

以下範例使用合成資料模擬外部 API 的回應酬載,並將輸出內容提交回模型。

REST

PROJECT_ID=myproject
MODEL_ID=gemini-2.0-flash
LOCATION="us-central1"

curl -X POST \
-H "Authorization: Bearer $(gcloud auth print-access-token)" \
-H "Content-Type: application/json" \
https://${LOCATION}-aiplatform.googleapis.com/v1/projects/${PROJECT_ID}/locations/${LOCATION}/publishers/google/models/${MODEL_ID}:generateContent \
-d '{
"contents": [
{
  "role": "user",
  "parts": {
    "text": "What is the weather in Boston?"
  }
},
{
  "role": "model",
  "parts": [
    {
      "functionCall": {
        "name": "get_current_weather",
        "args": {
          "location": "Boston, MA"
        }
      }
    }
  ]
},
{
  "role": "user",
  "parts": [
    {
      "functionResponse": {
        "name": "get_current_weather",
        "response": {
          "temperature": 20,
          "unit": "C"
        }
      }
    }
  ]
}
],
"tools": [
{
  "function_declarations": [
    {
      "name": "get_current_weather",
      "description": "Get the current weather in a specific location",
      "parameters": {
        "type": "object",
        "properties": {
          "location": {
            "type": "string",
            "description": "The city name of the location for which to get the weather."
          }
        },
        "required": [
          "location"
        ]
      }
    }
  ]
}
]
}'

Python

function_response_contents = []
function_response_parts = []

# Iterates through the function calls in the response in case there are parallel function call requests
for function_call in response.candidates[0].function_calls:
    print(f"Function call: {function_call.name}")

    # In this example, we'll use synthetic data to simulate a response payload from an external API
    if (function_call.args['location'] == "Boston, MA"):
      api_response = { "location": "Boston, MA", "temperature": 38, "description": "Partly Cloudy" }
    if (function_call.args['location'] == "San Francisco, CA"):
      api_response = { "location": "San Francisco, CA", "temperature": 58, "description": "Sunny" }

    function_response_parts.append(
        Part.from_function_response(
            name=function_call.name,
            response={"contents": api_response}
        )
    )
    # Add the function call response to the contents
    function_response_contents = Content(role="user", parts=function_response_parts)

# Submit the User's prompt, model's response, and API output back to the model
response = model.generate_content(
  [
    Content( # User prompt
      role="user",
      parts=[
          Part.from_text("What is the weather like in Boston?"),
      ],
    ),
    response.candidates[0].content,  # Function call response
    function_response_contents   # API output
  ],
  tools=[
    Tool(
      function_declarations=[get_current_weather_func],
    )
  ],
)
# Get the model summary response
print(response.text)

如需 API 叫用作業的最佳做法,請參閱「最佳做法 - API 叫用」。

如果模型提出了多個並行函式呼叫,應用程式必須將所有回應傳回模型。詳情請參閱平行函式呼叫範例

模型可能會判斷回應提示時,需要使用其他函式的輸出內容。在這種情況下,應用程式從模型收到的回應會包含另一個函式名稱和另一組參數值。

如果模型判斷 API 回應足以回應使用者提示,就會建立自然語言回應,並傳回至應用程式。在這種情況下,應用程式必須將回應傳回給使用者。以下是自然語言回應範例:

It is currently 38 degrees Fahrenheit in Boston, MA with partly cloudy skies.

並行函式呼叫

如果提示為「取得波士頓和舊金山的天氣詳細資料?」,模型可能會建議幾個並行函式呼叫。如需支援並行函式呼叫的型號清單,請參閱「支援的型號」。

REST

這個範例說明包含一個 get_current_weather 函式的情況。使用者提示為「Get weather details in Boston and San Francisco?」(取得波士頓和舊金山的天氣詳細資料?)。模型會建議兩個平行的 get_current_weather 函式呼叫:一個使用參數 Boston,另一個使用參數 San Francisco

如要進一步瞭解要求參數,請參閱 Gemini API

{
"candidates": [
  {
    "content": {
      "role": "model",
      "parts": [
        {
          "functionCall": {
            "name": "get_current_weather",
            "args": {
              "location": "Boston"
            }
          }
        },
        {
          "functionCall": {
            "name": "get_current_weather",
            "args": {
              "location": "San Francisco"
            }
          }
        }
      ]
    },
    ...
  }
],
...
}

以下指令示範如何將函式輸出內容提供給模型。將 my-project 替換為您的 Google Cloud 專案名稱。

模型要求

PROJECT_ID=my-project
MODEL_ID=gemini-2.0-flash
LOCATION="us-central1"
curl -X POST \
-H "Authorization: Bearer $(gcloud auth print-access-token)" \
-H "Content-Type: application/json" \
https://${LOCATION}-aiplatform.googleapis.com/v1/projects/${PROJECT_ID}/locations/${LOCATION}/publishers/google/models/${MODEL_ID}:generateContent \
-d '{
"contents": [
{
  "role": "user",
  "parts": {
    "text": "What is difference in temperature in Boston and San Francisco?"
  }
},
{
  "role": "model",
  "parts": [
    {
      "functionCall": {
        "name": "get_current_weather",
        "args": {
          "location": "Boston"
        }
      }
    },
    {
      "functionCall": {
        "name": "get_current_weather",
        "args": {
          "location": "San Francisco"
        }
      }
    }
  ]
},
{
  "role": "user",
  "parts": [
    {
      "functionResponse": {
        "name": "get_current_weather",
        "response": {
          "temperature": 30.5,
          "unit": "C"
        }
      }
    },
    {
      "functionResponse": {
        "name": "get_current_weather",
        "response": {
          "temperature": 20,
          "unit": "C"
        }
      }
    }
  ]
}
],
"tools": [
{
  "function_declarations": [
    {
      "name": "get_current_weather",
      "description": "Get the current weather in a specific location",
      "parameters": {
        "type": "object",
        "properties": {
          "location": {
            "type": "string",
            "description": "The city name of the location for which to get the weather."
          }
        },
        "required": [
          "location"
        ]
      }
    }
  ]
}
]
}'


模型產生的自然語言回應如下:

模型回應

[
{
    "candidates": [
        {
            "content": {
                "parts": [
                    {
                        "text": "The temperature in Boston is 30.5C and the temperature in San Francisco is 20C. The difference is 10.5C. \n"
                    }
                ]
            },
            "finishReason": "STOP",
            ...
        }
    ]
    ...
}
]


Python

這個範例說明含有一個 get_current_weather 函式的情況。使用者提示為「波士頓和舊金山的天氣如何?」

my-project 替換為您的 Google Cloud 專案名稱。

import vertexai
from vertexai.generative_models import (
    Content,
    FunctionDeclaration,
    GenerationConfig,
    GenerativeModel,
    Part,
    Tool,
    ToolConfig
)

# Initialize Vertex AI
# TODO(developer): Update the project
vertexai.init(project="my-project", location="us-central1")

# Initialize Gemini model
model = GenerativeModel(model_name="gemini-2.0-flash")

# Manual function declaration
get_current_weather_func = FunctionDeclaration(
    name="get_current_weather",
    description="Get the current weather in a given location",
    # Function parameters are specified in JSON schema format
    parameters={
        "type": "object",
        "properties": {
            "location": {
              "type": "string",
              "description": "The city name of the location for which to get the weather.",
              "default": {
                "string_value": "Boston, MA"
              }
          }
        },
    },
)

response = model.generate_content(
    contents = [
      Content(
        role="user",
          parts=[
              Part.from_text("What is the weather like in Boston and San Francisco?"),
          ],
      )
    ],
    generation_config = GenerationConfig(temperature=0),
    tools = [
      Tool(
        function_declarations=[get_current_weather_func],
      )
    ]
)

以下指令示範如何將函式輸出內容提供給模型。

function_response_contents = []
function_response_parts = []

# You can have parallel function call requests for the same function type.
# For example, 'location_to_lat_long("London")' and 'location_to_lat_long("Paris")'
# In that case, collect API responses in parts and send them back to the model

for function_call in response.candidates[0].function_calls:
    print(f"Function call: {function_call.name}")

    # In this example, we'll use synthetic data to simulate a response payload from an external API
    if (function_call.args['location'] == "Boston, MA"):
      api_response = { "location": "Boston, MA", "temperature": 38, "description": "Partly Cloudy" }
    if (function_call.args['location'] == "San Francisco, CA"):
      api_response = { "location": "San Francisco, CA", "temperature": 58, "description": "Sunny" }

    function_response_parts.append(
        Part.from_function_response(
            name=function_call.name,
            response={"contents": api_response}
        )
    )
    # Add the function call response to the contents
    function_response_contents = Content(role="user", parts=function_response_parts)

function_response_contents

response = model.generate_content(
    contents = [
        Content(
        role="user",
          parts=[
              Part.from_text("What is the weather like in Boston and San Francisco?"),
          ],
        ),  # User prompt
        response.candidates[0].content,  # Function call response
        function_response_contents,  # Function response
    ],
    tools = [
      Tool(
        function_declarations=[get_current_weather_func],
      )
    ]
)
# Get the model summary response
print(response.text)

Go

import (
	"context"
	"encoding/json"
	"errors"
	"fmt"
	"io"

	"cloud.google.com/go/vertexai/genai"
)

// parallelFunctionCalling shows how to execute multiple function calls in parallel
// and return their results to the model for generating a complete response.
func parallelFunctionCalling(w io.Writer, projectID, location, modelName string) error {
	// location = "us-central1"
	// modelName = "gemini-2.0-flash-001"
	ctx := context.Background()
	client, err := genai.NewClient(ctx, projectID, location)
	if err != nil {
		return fmt.Errorf("failed to create GenAI client: %w", err)
	}
	defer client.Close()

	model := client.GenerativeModel(modelName)
	// Set temperature to 0.0 for maximum determinism in function calling.
	model.SetTemperature(0.0)

	funcName := "getCurrentWeather"
	funcDecl := &genai.FunctionDeclaration{
		Name:        funcName,
		Description: "Get the current weather in a given location",
		Parameters: &genai.Schema{
			Type: genai.TypeObject,
			Properties: map[string]*genai.Schema{
				"location": {
					Type: genai.TypeString,
					Description: "The location for which to get the weather. " +
						"It can be a city name, a city name and state, or a zip code. " +
						"Examples: 'San Francisco', 'San Francisco, CA', '95616', etc.",
				},
			},
			Required: []string{"location"},
		},
	}
	// Add the weather function to our model toolbox.
	model.Tools = []*genai.Tool{
		{
			FunctionDeclarations: []*genai.FunctionDeclaration{funcDecl},
		},
	}

	prompt := genai.Text("Get weather details in New Delhi and San Francisco?")
	resp, err := model.GenerateContent(ctx, prompt)

	if err != nil {
		return fmt.Errorf("failed to generate content: %w", err)
	}
	if len(resp.Candidates) == 0 {
		return errors.New("got empty response from model")
	} else if len(resp.Candidates[0].FunctionCalls()) == 0 {
		return errors.New("got no function call suggestions from model")
	}

	// In a production environment, consider adding validations for function names and arguments.
	for _, fnCall := range resp.Candidates[0].FunctionCalls() {
		fmt.Fprintf(w, "The model suggests to call the function %q with args: %v\n", fnCall.Name, fnCall.Args)
		// Example response:
		// The model suggests to call the function "getCurrentWeather" with args: map[location:New Delhi]
		// The model suggests to call the function "getCurrentWeather" with args: map[location:San Francisco]
	}

	// Use synthetic data to simulate responses from the external API.
	// In a real application, this would come from an actual weather API.
	mockAPIResp1, err := json.Marshal(map[string]string{
		"location":         "New Delhi",
		"temperature":      "42",
		"temperature_unit": "C",
		"description":      "Hot and humid",
		"humidity":         "65",
	})
	if err != nil {
		return fmt.Errorf("failed to marshal function response to JSON: %w", err)
	}

	mockAPIResp2, err := json.Marshal(map[string]string{
		"location":         "San Francisco",
		"temperature":      "36",
		"temperature_unit": "F",
		"description":      "Cold and cloudy",
		"humidity":         "N/A",
	})
	if err != nil {
		return fmt.Errorf("failed to marshal function response to JSON: %w", err)
	}

	// Note, that the function calls don't have to be chained. We can obtain both responses in parallel
	// and return them to Gemini at once.
	funcResp1 := &genai.FunctionResponse{
		Name: funcName,
		Response: map[string]any{
			"content": mockAPIResp1,
		},
	}
	funcResp2 := &genai.FunctionResponse{
		Name: funcName,
		Response: map[string]any{
			"content": mockAPIResp2,
		},
	}

	// Return both API responses to the model allowing it to complete its response.
	resp, err = model.GenerateContent(ctx, prompt, funcResp1, funcResp2)
	if err != nil {
		return fmt.Errorf("failed to generate content: %w", err)
	}
	if len(resp.Candidates) == 0 || len(resp.Candidates[0].Content.Parts) == 0 {
		return errors.New("got empty response from model")
	}

	fmt.Fprintln(w, resp.Candidates[0].Content.Parts[0])
	// Example response:
	// The weather in New Delhi is hot and humid with a humidity of 65 and a temperature of 42°C. The weather in San Francisco ...

	return nil
}

強制函式呼叫

您可以強制模型只預測函式呼叫,而非允許模型在自然語言回應和函式呼叫之間進行選擇。這就是所謂的強制函式呼叫。您也可以選擇為模型提供完整的函式宣告,但將回應限制在這些函式的子集。

模式 說明
AUTO 預設模型行為。模型會決定是否要預測函式呼叫或自然語言回應。
ANY 模型會受到限制,一律預測函式呼叫。如果未提供 allowed_function_names,模型會從所有可用的函式宣告中挑選。如果提供 allowed_function_names,模型會從允許的函式組合中挑選。
NONE 模型不得預測函式呼叫。這項行為等同於模型要求,但沒有任何相關聯的函式宣告。

以下範例會強制預測 get_weather 函式呼叫。

Python

response = model.generate_content(
    contents = [
      Content(
        role="user",
          parts=[
              Part.from_text("What is the weather like in Boston?"),
          ],
      )
    ],
    generation_config = GenerationConfig(temperature=0),
    tools = [
      Tool(
        function_declarations=[get_weather_func, some_other_function],
      )
    ],
    tool_config=ToolConfig(
        function_calling_config=ToolConfig.FunctionCallingConfig(
            # ANY mode forces the model to predict only function calls
            mode=ToolConfig.FunctionCallingConfig.Mode.ANY,
            # Allowed function calls to predict when the mode is ANY. If empty, any of
            # the provided function calls will be predicted.
            allowed_function_names=["get_weather"],
        )
    )
)

函式結構定義範例

函式宣告與 OpenAPI 結構定義相容。我們支援以下屬性:typenullablerequiredformatdescriptionpropertiesitemsenumanyOf$ref$defs。不支援其他屬性。

含有物件和陣列參數的函式

以下範例使用 Python 字典,宣告同時接受物件和陣列參數的函式:

extract_sale_records_func = FunctionDeclaration(
  name="extract_sale_records",
  description="Extract sale records from a document.",
  parameters={
      "type": "object",
      "properties": {
          "records": {
              "type": "array",
              "description": "A list of sale records",
              "items": {
                  "description": "Data for a sale record",
                  "type": "object",
                  "properties": {
                      "id": {"type": "integer", "description": "The unique id of the sale."},
                      "date": {"type": "string", "description": "Date of the sale, in the format of MMDDYY, e.g., 031023"},
                      "total_amount": {"type": "number", "description": "The total amount of the sale."},
                      "customer_name": {"type": "string", "description": "The name of the customer, including first name and last name."},
                      "customer_contact": {"type": "string", "description": "The phone number of the customer, e.g., 650-123-4567."},
                  },
                  "required": ["id", "date", "total_amount"],
              },
          },
      },
      "required": ["records"],
  },
)


含有列舉參數的函式

以下範例使用 Python 字典宣告函式,該函式會採用整數 enum 參數:

set_status_func = FunctionDeclaration(
  name="set_status",
  description="set a ticket's status field",
  # Function parameters are specified in JSON schema format
  parameters={
      "type": "object",
      "properties": {
        "status": {
          "type": "integer",
          "enum": [ "10", "20", "30" ],   # Provide integer (or any other type) values as strings.
        }
      },
  },
)


含有 ref 和 def 的函式

下列 JSON 函式宣告會使用 refdefs 屬性:

{
  "contents": ...,
  "tools": [
    {
      "function_declarations": [
        {
          "name": "get_customer",
          "description": "Search for a customer by name",
          "parameters": {
            "type": "object",
            "properties": {
              "first_name": { "ref": "#/defs/name" },
              "last_name": { "ref": "#/defs/name" }
            },
            "defs": {
              "name": { "type": "string" }
            }
          }
        }
      ]
    }
  ]
}


使用須知:

  • 與 OpenAPI 結構定義不同的是,請指定不含 $ 符號的 refdefs
  • ref 必須參照 defs 的直接子項,不得參照外部項目。
  • 巢狀結構的深度上限為 32。
  • defs 中的遞迴深度 (自我參照) 上限為兩個。

from_func 與陣列參數

以下程式碼範例會宣告函式,該函式會將數字陣列相乘,並使用 from_func 產生 FunctionDeclaration 結構定義。

from typing import List

# Define a function. Could be a local function or you can import the requests library to call an API
def multiply_numbers(numbers: List[int] = [1, 1]) -> int:
  """
  Calculates the product of all numbers in an array.

  Args:
      numbers: An array of numbers to be multiplied.

  Returns:
      The product of all the numbers. If the array is empty, returns 1.
  """

  if not numbers:  # Handle empty array
      return 1

  product = 1
  for num in numbers:
      product *= num

  return product

multiply_number_func = FunctionDeclaration.from_func(multiply_numbers)

"""
multiply_number_func contains the following schema:

{'name': 'multiply_numbers',
  'description': 'Calculates the product of all numbers in an array.',
  'parameters': {'properties': {'numbers': {'items': {'type': 'INTEGER'},
    'description': 'list of numbers',
    'default': [1.0, 1.0],
    'title': 'Numbers',
    'type': 'ARRAY'}},
  'description': 'Calculates the product of all numbers in an array.',
  'title': 'multiply_numbers',
  'property_ordering': ['numbers'],
  'type': 'OBJECT'}}
"""


函式呼叫的最佳做法

撰寫清楚且詳細的函式名稱、參數說明和操作說明

  • 函式名稱應以英文字母或底線開頭,且只能包含 a-z、A-Z、0-9、底線、半形句點或連字號,長度上限為 64 個字元。

  • 函式說明應清楚詳盡。例如,book_flight_ticket 函式的說明可能為 book flight tickets after confirming users' specific requirements, such as time, departure, destination, party size and preferred airline

使用強型參數

如果參數值來自有限集合,請新增 enum 欄位,而非將值集合放入說明中。如果參數值一律是整數,請將類型設為 integer 而非 number

使用系統指示

使用含有日期、時間或位置參數的函式時,請在系統指示中加入目前的日期、時間或相關位置資訊 (例如城市和國家/地區)。這樣一來,即使使用者提示缺少詳細資料,模型仍可獲得必要的背景資訊,準確處理要求。

更新使用者提示

為達最佳效果,請在使用者提示前加上下列詳細資料:

  • 模型的其他背景資訊,例如 You are a flight API assistant to help with searching flights based on user preferences.
  • 如何使用函式和使用時機的詳細說明或操作說明,例如 Don't make assumptions on the departure or destination airports. Always use a future date for the departure or destination time.
  • 使用者查詢內容不夠明確時,請問清楚的說明問題,例如 Ask clarifying questions if not enough information is available.

使用產生設定

請使用 0 或其他低值做為溫度參數。這麼做可指示模型產生更可靠的結果,並減少幻覺。

驗證 API 呼叫

如果模型建議叫用會傳送訂單、更新資料庫或造成重大後果的函式,請先向使用者驗證函式呼叫,再執行該函式。

定價

函式呼叫的價格取決於文字輸入內容和輸出內容中的字元數。如需更多資訊,請參閱「Vertex AI 定價」。

在此處,文字輸入 (提示) 是指目前對話回合的使用者提示、目前對話回合的函式宣告,以及對話記錄。對話記錄包含先前對話輪次的查詢、函式呼叫和函式回應。Vertex AI 會將對話記錄截斷至 32,000 個字元。

文字輸出 (回應) 是指目前對話輪次的函式呼叫和文字回應。

函式呼叫的用途

您可以使用函式呼叫執行以下工作:

用途 範例說明 連結示例
整合外部 API 使用氣象 API 取得天氣資訊 Notebook 教學課程
將地址轉換為經緯度座標 Notebook 教學課程
使用貨幣兌換 API 轉換貨幣 程式碼研究室
建構進階聊天機器人 回答客戶對產品和服務的疑問 Notebook 教學課程
建立助理,回答與公司相關的財務和新聞問題 Notebook 教學課程
結構和控制函式呼叫 從原始記錄資料中擷取結構化實體 Notebook 教學課程
從使用者輸入內容中擷取單一或多個參數 Notebook 教學課程
在函式呼叫中處理清單和巢狀資料結構 Notebook 教學課程
處理函式呼叫行為 處理平行函式呼叫和回應 Notebook 教學課程
管理模型可呼叫的函式和時間 Notebook 教學課程
以自然語言查詢資料庫 將自然語言問題轉換為 BigQuery 的 SQL 查詢 範例應用程式
多模態函式呼叫 使用圖片、影片、音訊和 PDF 檔做為觸發函式呼叫的輸入內容 Notebook 教學課程

以下是其他用途:

  • 解讀語音指令:建立與車內工作相關的函式。舉例來說,您可以建立可開啟收音機或啟動空調的函式。將使用者的語音指令音訊檔案傳送至模型,並要求模型將音訊轉換成文字,並識別使用者要呼叫的函式。

  • 根據環境觸發條件自動化工作流程:建立可代表可自動化程序的函式。將環境感應器的資料提供給模型,並要求模型剖析及處理資料,以決定是否應啟用一或多個工作流程。舉例來說,模型可以處理倉庫中的溫度資料,並選擇啟用灑水器功能。

  • 自動指派支援單:為模型提供支援單、記錄和情境感知規則。請模型處理所有這類資訊,以便判斷應將支援單指派給誰。呼叫函式,將票證指派給模型建議的使用者。

  • 從知識庫擷取資訊:建立函式,擷取特定主題的學術文章並加以摘要。讓模型回答學科相關問題,並為答案提供參考資料。

後續步驟
