Kubernetes 集群由控制平面和称为“节点”的工作器机器组成。控制平面和节点构成 Kubernetes 集群编排系统。GKE on GDC 负责管理集群的整个底层基础设施，包括控制平面和所有系统组件。您需要负责管理运行容器化工作负载的工作器节点。

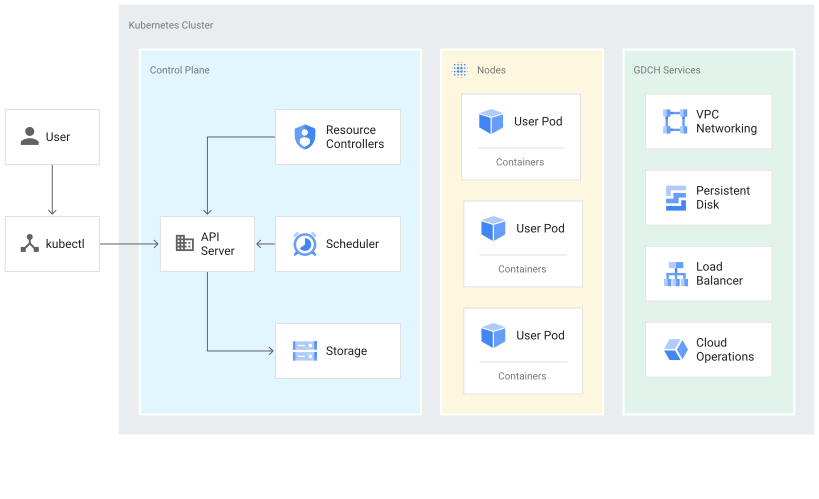

下图显示了 Kubernetes 集群的架构：
关于控制平面
控制平面运行 Kubernetes API 服务器、调度器和核心资源控制器等进程。GKE on GDC 管理从集群创建到删除的控制平面生命周期。其中包括对控制平面上运行的 Kubernetes 版本的升级。GDC 会自动执行这项升级工作，如果您希望在安排的自动升级时间之前进行升级，也可以请求手动执行。
控制平面和 Kubernetes API
控制平面是集群的统一端点。您可以通过 Kubernetes API 调用与控制平面进行交互。控制平面运行 Kubernetes API 服务器进程 (kube-apiserver) 以处理 API 请求。您可以通过以下方式调用 Kubernetes API：
直接调用：KRM
间接调用：Kubernetes 命令行客户端（例如 kubectl）或 GDC 控制台。
API 服务器进程是集群所有通信的中心。所有内部集群组件（如节点、系统进程和应用控制器）都充当 API 服务器的客户端。
您的 API 请求会告诉 Kubernetes 集群中对象的所选状态。Kubernetes 会尝试持续保持该状态。Kubernetes 支持您以命令方式或声明方式配置 API 中的对象。
工作器节点管理
控制平面会管理集群的所有节点上运行的内容。控制平面安排工作负载并管理工作负载的生命周期、扩缩和升级。此外，控制平面还会管理这些工作负载的网络和存储资源。控制平面和节点使用 Kubernetes API 相互通信。
节点简介
节点是运行容器化应用和其他工作负载的工作器机器。各个机器是 GKE on GDC 创建的虚拟机 (VM)。控制平面会管理和接收每个节点自行报告的状态更新。
