開始使用 Looker 示意圖元件

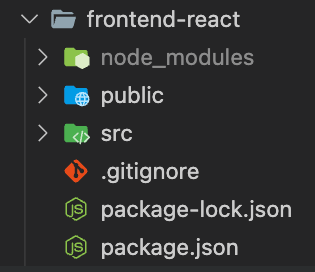

npx create-react-app frontend-react cd frontend-react npm i
@looker/visualizations npm i @looker/components @looker/components-data
styled-components

{
  "name": "frontend-react",
  "version": "0.1.0",
  "private": true,
  "dependencies": {
    "@looker/components": "^4.0.3",
    "@looker/components-data": "^1.0.0",
    "@looker/sdk": "^22.16.0",
    "@looker/sdk-rtl": "^21.4.0",
    "@looker/visualizations": "^1.1.1",
    "@testing-library/jest-dom": "^5.16.5",
    "@testing-library/react": "^12.1.0",
    "@testing-library/user-event": "^12.4.0",
    "i": "^0.3.7",
    "npm": "^8.19.2",
    "react": "^16.14.0",
    "react-dom": "^16.14.0",
    "react-scripts": "5.0.1",
    "styled-components": "^5.3.6",
    "web-vitals": "^2.1.4"
  },
  "scripts": {
    "start": "react-scripts start",
    "build": "react-scripts build",
    "test": "react-scripts test",
    "eject": "react-scripts eject"
  },
  "eslintConfig": {
    "extends": [
      "react-app",
      "react-app/jest"
    ]
  },
  "browserslist": {
    "production": [
      ">0.2%",
      "not dead",
      "not op_mini all"
    ],
    "development": [
      "last 1 chrome version",
      "last 1 firefox version",
      "last 1 safari version"
    ]
  }
}

REACT_APP_LOOKER_API_HOST=https://your-looker-instance.looker.com
REACT_APP_BACKEND_SERVER=http://localhost:3001/

import { Looker40SDK } from '@looker/sdk'
import {
  AuthToken,
  AuthSession,
  BrowserTransport,
  DefaultSettings,
} from '@looker/sdk-rtl'

class SDKSession extends AuthSession {
  // This is a placeholder for the fetchToken function.
  // It is modified to make it useful later.
  async fetchToken() {
    return fetch('')
  }

  activeToken = new AuthToken()
  constructor(settings, transport) {
    super(settings, transport || new BrowserTransport(settings))
  }

  // This function checks to see if the user is already authenticated
  isAuthenticated() {
    const token = this.activeToken
    if (!(token && token.access_token)) return false
    return token.isActive()
  }

  // This function gets the current token or fetches a new one if necessary
  async getToken() {
    if (!this.isAuthenticated()) {
      const token = await this.fetchToken()
      const res = await token.json()
      this.activeToken.setToken(res.user_token)
    }
    return this.activeToken
  }

  // This function authenticates a user, which involves getting a new token
  // It returns a modified object with a new authorization header.
  async authenticate(props) {
    const token = await this.getToken()
    if (token && token.access_token) {
      props.mode = 'cors'
      delete props.credentials
      props.headers = {
        ...props.headers,
        Authorization: `Bearer ${this.activeToken.access_token}`,
      }
    }
    return props
  }
}

// This class sets the fetchToken to use the 'real' address of the backend server.
class SDKSessionEmbed extends SDKSession {
  async fetchToken() {
    return fetch(`${process.env.REACT_APP_BACKEND_SERVER}`)
  }
}

// This creates a new session with the 'real' address of the backend server.
const session = new SDKSessionEmbed({
  ...DefaultSettings,
  base_url: process.env.REACT_APP_LOOKER_API_HOST,
})

// This exports the SDK with the authenticated session
export const sdk = new Looker40SDK(session)

import { sdk } from '../src/helpers/CorsSession'
import { Query, Visualization } from '@looker/visualizations'
import { DataProvider } from '@looker/components-data'
import { ComponentsProvider } from '@looker/components'

function App() {
  return (
    <>
      <h1>Get started with Looker visualization components</h1>
      <ComponentsProvider>
        <DataProvider sdk={sdk}>
          {/* Change this query slug to match your query slug */}
          <Query query="Jlm4YHPeT3lLGA9UtHjZcA">
            <Visualization />
          </Query>
        </DataProvider>
      </ComponentsProvider>
    </>
  )
}

export default App

mkdir backend-node
cd backend-node
npm init -y
npm i express cors @looker/sdk-node

{
  "name": "looker-embed-backend",
  "version": "1.0.0",
  "description": "Backend helper service for getting started with Looker Viz components",
  "main": "server.js",
  "scripts": {
    "start": "node server.js"
  },
  "author": "Looker",
  "license": "Apache-2.0",
  "dependencies": {
    "@looker/sdk-node": "^22.16.0",
    "cors": "^2.8.5",
    "express": "^4.18.2"
  }
}

const cors = require('cors')
const express = require('express')
const { LookerNodeSDK } = require('@looker/sdk-node')

const port = 3001
const app = express()
// The following init40 method will authenticate using
// the looker.ini file
const sdk = LookerNodeSDK.init40()

app.use(
  cors({
    origin: '*',
  })
)
app.use(express.json())

app.get('/', async (req, res) => {
  const userId = await sdk.ok(sdk.me('id'))
  const accessToken = await sdk.login_user(userId.id)
  const user = {
    user_token: accessToken.value,
    token_last_refreshed: Date.now(),
  }
  res.json({ ...user })
})

app.listen(port, async () => {
  console.log(`Backend Server listening on port ${port}`)
})
