應用程式記錄與監控

本頁面說明如何設定 Google Distributed Cloud 的使用者叢集,將使用者應用程式的自訂記錄和指標傳送至 Cloud Logging 和 Cloud Monitoring。使用者應用程式的指標會透過 Google Cloud Managed Service for Prometheus 收集。

為使用者應用程式啟用 Managed Service for Prometheus

Managed Service for Prometheus 的設定會儲存在名為 stackdriver 的 Stackdriver 物件中。

  1. 開啟 stackdriver 物件進行編輯:

    kubectl --kubeconfig=USER_CLUSTER_KUBECONFIG --namespace kube-system edit stackdriver stackdriver


    請將 USER_CLUSTER_KUBECONFIG 替換為使用者叢集 kubeconfig 檔案的路徑。

  2. 在「spec」下方,將「enableGMPForApplications」設為「true」:

      apiVersion: addons.gke.io/v1alpha1
      kind: Stackdriver
      metadata:
        name: stackdriver
        namespace: kube-system
      spec:
        projectID: ...
        clusterName: ...
        clusterLocation: ...
        proxyConfigSecretName: ...
        enableGMPForApplications: true
        enableVPC: ...
        optimizedMetrics: true

  3. 關閉編輯過的檔案。這項操作會在叢集中開始執行 Google 代管的 Prometheus (GMP) 元件。

  4. 如要檢查元件,請執行下列指令:

    kubectl --kubeconfig=USER_CLUSTER_KUBECONFIG --namespace gmp-system get pods


    這個指令會輸出類似以下的結果:

     NAME                                 READY   STATUS    RESTARTS        AGE
     collector-abcde                      2/2     Running   1 (5d18h ago)   5d18h
     collector-fghij                      2/2     Running   1 (5d18h ago)   5d18h
     collector-klmno                      2/2     Running   1 (5d18h ago)   5d18h
     gmp-operator-68d49656fc-abcde        1/1     Running   0               5d18h
     rule-evaluator-7c686485fc-fghij      2/2     Running   1 (5d18h ago)   5d18h


Managed Service for Prometheus 支援規則評估和快訊。如要設定規則評估,請參閱「規則評估」。

執行範例應用程式

在本節中,您將建立會發出 Prometheus 指標的應用程式,並使用 Google 代管的 Prometheus 收集指標。詳情請參閱 Google Cloud Managed Service for Prometheus

部署範例應用程式

  1. 為您建立的資源建立 gmp-test 命名空間,做為範例應用程式的一部分:

    kubectl --kubeconfig=USER_CLUSTER_KUBECONFIG create ns gmp-test

  2. 受管理服務會提供範例應用程式的資訊清單,該應用程式會在 metrics 連接埠上發出 Prometheus 指標。這個應用程式使用三個副本。

    如要部署範例應用程式,請執行下列指令:

    kubectl --kubeconfig USER_CLUSTER_KUBECONFIG -n gmp-test apply -f https://raw.githubusercontent.com/GoogleCloudPlatform/prometheus-engine/v0.4.1/examples/example-app.yaml


設定 PodMonitoring 資源

如要擷取範例應用程式發出的指標資料,請使用目標擷取功能。受管理服務會使用 PodMonitoring 自訂資源 (CR) 設定目標抓取和指標擷取作業。您可以將現有的 prometheus-operator 資源轉換為 PodMonitoring CR

PodMonitoring CR 只會擷取 CR 部署所在命名空間中的目標。 如要擷取多個命名空間中的目標,請在每個命名空間中部署相同的 PodMonitoring CR。如要確認 PodMonitoring 資源是否已安裝在預期命名空間中,請執行下列指令:

 kubectl --kubeconfig USER_CLUSTER_KUBECONFIG get podmonitoring -A

如需所有 Managed Service for Prometheus CR 的參考說明文件,請參閱 prometheus-engine/doc/api reference

下列資訊清單會在 gmp-test 命名空間中定義 PodMonitoring 資源 prom-example。這項資源會找出命名空間中所有標籤為 app 且值為 prom-example 的 Pod。系統會每隔 30 秒,在 /metrics HTTP 路徑上,透過名為 metrics 的通訊埠,擷取相符的 Pod。

apiVersion: monitoring.googleapis.com/v1
kind: PodMonitoring
metadata:
  name: prom-example
spec:
  selector:
    matchLabels:
      app: prom-example
  endpoints:
  - port: metrics
    interval: 30s

如要套用這項資源,請執行下列指令:

kubectl --kubeconfig USER_CLUSTER_KUBECONFIG -n gmp-test apply -f https://raw.githubusercontent.com/GoogleCloudPlatform/prometheus-engine/v0.4.1/examples/pod-monitoring.yaml

Managed Service for Prometheus 現在會抓取相符的 Pod。

查詢指標資料

如要驗證 Prometheus 資料是否已匯出,最簡單的方法是在 Google Cloud 控制台的 Metrics Explorer 中使用 PromQL 查詢。

如要執行 PromQL 查詢,請按照下列步驟操作:

  1. 前往 Google Cloud 控制台的「Monitoring」頁面,或點選下列按鈕:

    前往「Monitoring」頁面

  2. 在導覽窗格中,選取「Metrics Explorer」

  3. 使用 Prometheus 查詢語言 (PromQL) 指定要在圖表上顯示的資料:

    1. 在「選取指標」窗格的工具列中,選取「程式碼編輯器」

    2. 在「語言」切換按鈕中選取「PromQL」。語言切換按鈕位於「程式碼編輯器」窗格底部。

    3. 在查詢編輯器中輸入查詢。舉例來說,如要繪製過去一小時內 CPU 在每種模式中花費的平均秒數,請使用下列查詢:

      avg(rate(kubernetes_io:anthos_container_cpu_usage_seconds_total
      {monitored_resource="k8s_node"}[1h]))


    如要進一步瞭解如何使用 PromQL,請參閱「在 Cloud Monitoring 中使用 PromQL」。

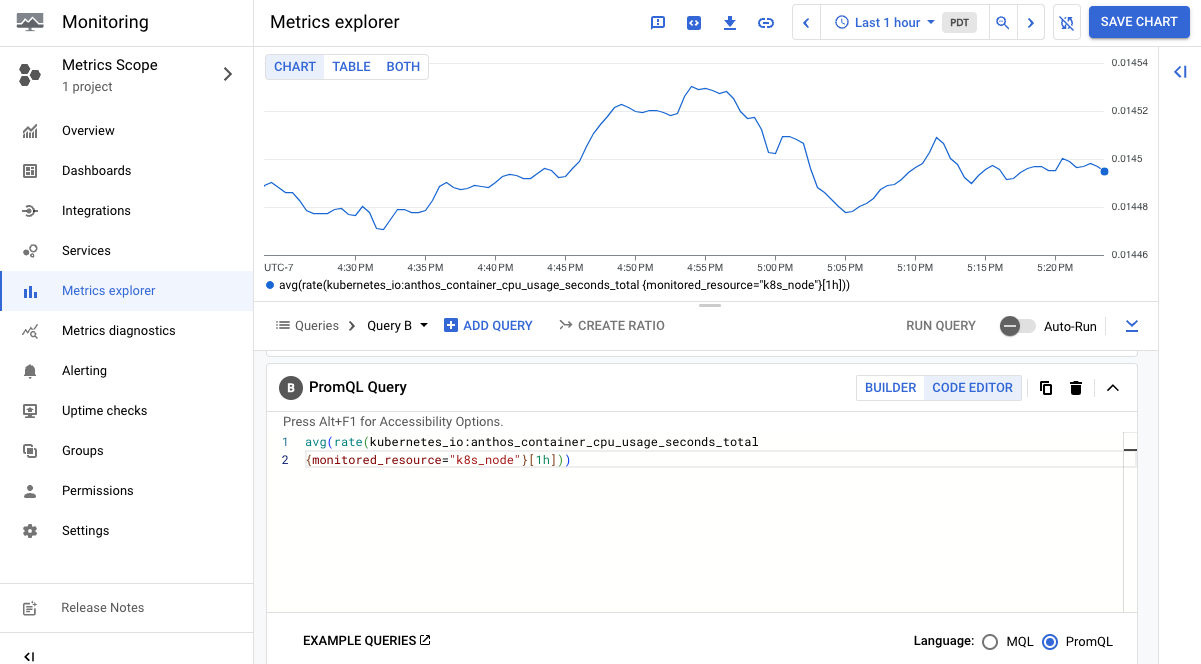

以下螢幕截圖顯示了 anthos_container_cpu_usage_seconds_total 指標的圖表:

Prometheus `anthos_container_cpu_usage_seconds_total` 指標的 Managed Service for Prometheus 圖表。

如果您收集大量資料,建議篩選匯出的指標,以降低費用。

為使用者應用程式啟用 Cloud Logging

記錄的設定會保留在名為 stackdriver 的 Stackdriver 物件中。

  1. 開啟 stackdriver 物件進行編輯:

    kubectl --kubeconfig=USER_CLUSTER_KUBECONFIG --namespace kube-system edit stackdriver stackdriver


    請將 USER_CLUSTER_KUBECONFIG 替換為使用者叢集 kubeconfig 檔案的路徑。

  2. 在「spec」下方,將「enableCloudLoggingForApplications」設為「true」:

      apiVersion: addons.gke.io/v1alpha1
      kind: Stackdriver
      metadata:
        name: stackdriver
        namespace: kube-system
      spec:
        projectID: ...
        clusterName: ...
        clusterLocation: ...
        proxyConfigSecretName: ...
        enableCloudLoggingForApplications: true
        enableVPC: ...
        optimizedMetrics: true

  3. 關閉編輯過的檔案。

執行範例應用程式

在本節中,您將建立可寫入自訂記錄的應用程式。

  1. 將下列 Deployment 資訊清單儲存至名為 my-app.yaml 的檔案。

    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: "monitoring-example"
      namespace: "default"
      labels:
        app: "monitoring-example"
    spec:
      replicas: 1
      selector:
        matchLabels:
          app: "monitoring-example"
      template:
        metadata:
          labels:
            app: "monitoring-example"
        spec:
          containers:
          - image: gcr.io/google-samples/prometheus-dummy-exporter:latest
            name: prometheus-example-exporter
            imagePullPolicy: Always
            command:
            - /bin/sh
            - -c
            - ./prometheus-dummy-exporter --metric-name=example_monitoring_up --metric-value=1 --port=9090
            resources:
              requests:
                cpu: 100m

  2. 建立 Deployment:

    kubectl --kubeconfig USER_CLUSTER_KUBECONFIG apply -f my-app.yaml


查看應用程式記錄檔

控制台

  1. 前往 Google Cloud 控制台的「Logs Explorer」。

    前往記錄檔探索工具

  2. 按一下「資源」。在「ALL_RESOURCE_TYPES」ALL_RESOURCE_TYPES下方,選取 Kubernetes Container

  3. 在「CLUSTER_NAME」CLUSTER_NAME下方,選取使用者叢集的名稱。

  4. 在「NAMESPACE_NAME」NAMESPACE_NAME下方,選取 default

  5. 按一下「新增」,然後點選「執行查詢」

  6. 在「Query results」(查詢結果) 下方,您可以看到monitoring-example部署作業的記錄項目。例如:

    {
      "textPayload": "2020/11/14 01:24:24 Starting to listen on :9090\n",
      "insertId": "1oa4vhg3qfxidt",
      "resource": {
        "type": "k8s_container",
        "labels": {
          "pod_name": "monitoring-example-7685d96496-xqfsf",
          "cluster_name": ...,
          "namespace_name": "default",
          "project_id": ...,
          "location": "us-west1",
          "container_name": "prometheus-example-exporter"
        }
      },
      "timestamp": "2020-11-14T01:24:24.358600252Z",
      "labels": {
        "k8s-pod/pod-template-hash": "7685d96496",
        "k8s-pod/app": "monitoring-example"
      },
      "logName": "projects/.../logs/stdout",
      "receiveTimestamp": "2020-11-14T01:24:39.562864735Z"
    }


gcloud

  1. 執行下列指令:

    gcloud logging read 'resource.labels.project_id="PROJECT_ID" AND \
        resource.type="k8s_container" AND resource.labels.namespace_name="default"'


    PROJECT_ID 替換為記錄監控專案的 ID。

  2. 在輸出內容中,您可以看到 monitoring-example Deployment 的記錄項目。例如:

    insertId: 1oa4vhg3qfxidt
    labels:
      k8s-pod/app: monitoring-example
      k8s- pod/pod-template-hash: 7685d96496
    logName: projects/.../logs/stdout
    receiveTimestamp: '2020-11-14T01:24:39.562864735Z'
    resource:
      labels:
        cluster_name: ...
        container_name: prometheus-example-exporter
        location: us-west1
        namespace_name: default
        pod_name: monitoring-example-7685d96496-xqfsf
        project_id: ...
      type: k8s_container
    textPayload: |
      2020/11/14 01:24:24 Starting to listen on :9090
    timestamp: '2020-11-14T01:24:24.358600252Z'


篩選應用程式記錄檔

篩選應用程式記錄檔可減少應用程式記錄費用,以及叢集到 Cloud Logging 的網路流量。從 Google Distributed Cloud 1.15.0 版開始,如果 enableCloudLoggingForApplications 設為 true,您可以依下列條件篩選應用程式記錄:

  • Pod 標籤 (podLabelSelectors)
  • 命名空間 (namespaces)
  • 記錄內容的規則運算式 (contentRegexes)

Google Distributed Cloud 只會將篩選結果傳送至 Cloud Logging。

定義應用程式記錄篩選器

Logging 的設定是在名為 stackdriver 的 Stackdriver 物件中指定。

  1. 開啟 stackdriver 物件進行編輯:

    kubectl --kubeconfig USER_CLUSTER_KUBECONFIG --namespace kube-system \
        edit stackdriver stackdriver


    USER_CLUSTER_KUBECONFIG 替換為使用者叢集 kubeconfig 檔案的路徑。

  2. spec 中新增 appLogFilter 區段:

      apiVersion: addons.gke.io/v1alpha1
      kind: Stackdriver
      metadata:
        name: stackdriver
        namespace: kube-system
      spec:
        enableCloudLoggingForApplications: true
        projectID: ...
        clusterName: ...
        clusterLocation: ...
        appLogFilter:
          keepLogRules:
          - namespaces:
            - prod
            ruleName: include-prod-logs
          dropLogRules:
          - podLabelSelectors:
            - disableGCPLogging=yes
            ruleName: drop-logs

  3. 儲存並關閉編輯過的檔案。

  4. (選用) 如果您使用 podLabelSelectors,請重新啟動 stackdriver-log-forwarder DaemonSet,盡快套用變更:

    kubectl --kubeconfig USER_CLUSTER_KUBECONFIG --namespace kube-system \
        rollout restart daemonset stackdriver-log-forwarder


    通常 10 分鐘後,podLabelSelectors就會生效。重新啟動 DaemonSet stackdriver-log-forwarder 可讓變更更快生效。

範例:僅在 prod 命名空間中加入 ERRORWARN 記錄

以下範例說明應用程式記錄篩選器的運作方式。您定義的篩選器會使用命名空間 (prod)、規則運算式 (.*(ERROR|WARN).*) 和 Pod 標籤 (disableGCPLogging=yes)。接著,如要驗證篩選器是否正常運作,請在 prod 命名空間中執行 Pod,測試這些篩選器條件。

如要定義及測試應用程式記錄篩選器,請按照下列步驟操作:

  1. 在 Stackdriver 物件中指定應用程式記錄篩選器:

    在下列 appLogFilter 範例中,系統只會保留 prod 命名空間中的 ERRORWARN 記錄。系統會捨棄標籤為 disableGCPLogging=yes 的 Pod 記錄:

    apiVersion: addons.gke.io/v1alpha1
    kind: Stackdriver
    metadata:
      name: stackdriver
      namespace: kube-system
    spec:
      ...
      appLogFilter:
        keepLogRules:
        - namespaces:
          - prod
          contentRegexes:
          - ".*(ERROR|WARN).*"
          ruleName: include-prod-logs
        dropLogRules:
        - podLabelSelectors:
          - disableGCPLogging=yes # kubectl label pods pod disableGCPLogging=yes
          ruleName: drop-logs
    ...

  2. prod 命名空間中部署 Pod,然後執行產生 ERRORINFO 記錄項目的指令碼:

    kubectl --kubeconfig USER_CLUSTER_KUBECONFIG run pod1 \
        --image gcr.io/cloud-marketplace-containers/google/debian10:latest \
        --namespace prod --restart Never --command -- \
        /bin/sh -c "while true; do echo 'ERROR is 404\\nINFO is not 404' && sleep 1; done"


    篩選後的記錄檔應只包含 ERROR 項目,不應包含 INFO 項目。

  3. disableGCPLogging=yes 標籤新增至 Pod:

    kubectl --kubeconfig USER_CLUSTER_KUBECONFIG label pods pod1 \
        --namespace prod disableGCPLogging=yes


    經過篩選的記錄不應再包含 pod1 Pod 的任何項目。

應用程式記錄篩選器 API 定義

應用程式記錄檔篩選器的定義會在 stackdriver 自訂資源定義中宣告。

如要取得 Stackdriver 自訂資源定義,請執行下列指令:

kubectl --kubeconfig USER_CLUSTER_KUBECONFIG get crd stackdrivers.addons.gke.io \
    --namespace kube-system -o yaml
